1： Survey the on-site situation

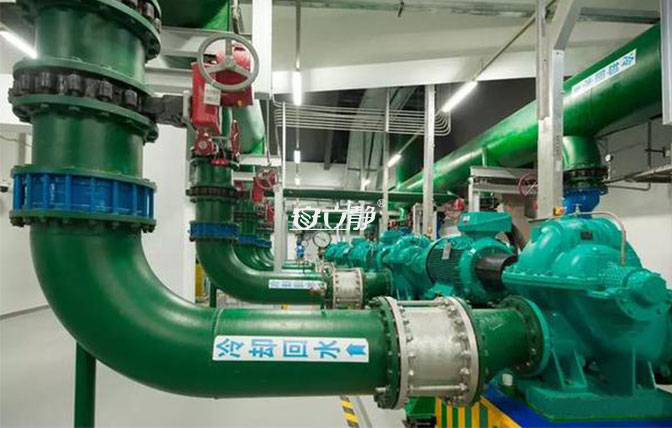

The pipes in the computer room are connected to the air conditioning equipment, and due to vibration issues with the air conditioning equipment, the pipes become a means of transmitting vibrations"Zhenqiao"。
On site inspection of vibration issues in multiple locations of water pipeline hanging, floor installation, and ventilation system air duct lifting.
Upon investigation, it was found that additional vibration reducing equipment such as spring dampers, spring hangers, rubber vibration pads, rubber flexible couplings, metal hoses, and bellows compensators need to be added,Perform vibration isolation treatment on the pipeline.

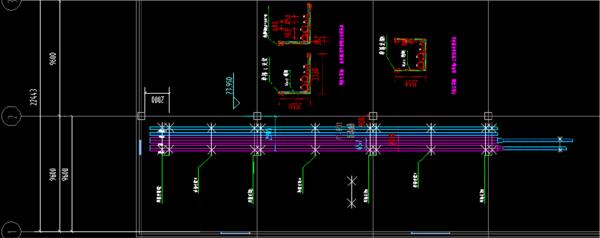

2： Design of pipeline vibration isolation scheme
3： Selecting the form and load-bearing calculation of pipeline supports
The total load can be calculated by the diameter, length, and quantity of the pipeline, and the load-bearing capacity of each point can be calculated separately based on the number of support points distributed on the bracket
After determining the load-bearing capacity of each pivot point, combined with the safety factor Customize the thickness and size of channel steel for pipeline supports.
4： Selection of shock absorbers
Select the shock absorber model based on the load-bearing capacity of each pivot point
For example:DN450Equal distribution of pipelines4The weight of each pivot point is:4434kg
Select each pivot point1Support shock absorbers, considering dynamic load factor coefficients1.25
The load of each shock absorber is:4434*1.25/4=1385.625kg

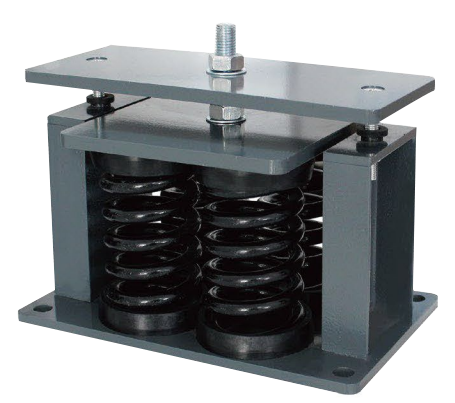

Choose a spring damper:ALJ-17041600load1200-1600kg
Jianli Shock Absorber Manufacturing Co., Ltd. is committed toThe research and production of various types of vibration reduction products for electromechanical equipment includes five categories: spring shock absorbers, rubber shock absorbers, thin film air floating shock absorbers, air cushion shock absorbers, steel wire rope shock absorbers, etc., with thousands of specifications, widely covering the field of vibration reduction for electromechanical equipment. At the same time, Jianli Company also provides vibration reduction technology services such as on-site testing, scheme design, and product customization.
