In industrial production and urban water supply systems, the operating frequency of water pumps is high, which generates strong vibrations and noise, bringing great burden and harm to equipment and facilities. Therefore, it is urgent to reduce the vibration of water pumps. The most common vibration reduction solution is to install shock absorbers and vibration reduction pedestals. So, what should be paid attention to when installing vibration reduction pedestals?
1、 Installation sequence
First, leave a space for installing the shock absorber on the waterproof foundation, then place the isolation pedestal on the foundation, assemble the shock absorber, and finally place the water pump on the isolation pedestal.
2、 Accurate hole position
The upper and lower installation holes of the shock absorber should be positioned as accurately as possible to avoid distortion of the shock absorber, which may lead to shock absorption failure
3、 Avoid bias
Place the water pump in the center of gravity as much as possible to avoid being too heavy. If it is slightly too heavy, adjust the height of the shock absorber to be level.
4、 Grounding soft connection
The grounding wire of the water pump is connected with soft copper wire to avoid forming rigid support between the equipment pedestal and the ground.
5、 The shock absorber cannot be concealed
After installation, the shock absorber cannot be buried in concrete.

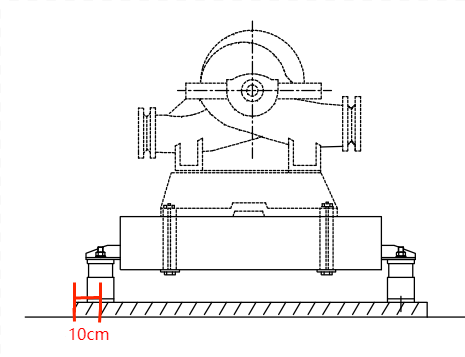

6、 Design the pedestal and select shock absorbers based on the size of the waterproof foundation
Adjust the distance between the bolt holes at the bottom of the shock absorber
Waterproof foundation edge10cmThe above.
7、 Avoid weight concentration
Start installing from the side with more shock absorbers to avoid the entire weight of the equipment being compressed1-2On the support shock absorber。
