Pump room vibration reduction mainly includes four parts: water pump vibration reduction, pipeline vibration reduction, wall vibration reduction, and floating floor vibration reduction. Each part requires

The corresponding vibration reduction treatment plan can only improve the overall vibration isolation efficiency of the pump room by doing a good job of vibration reduction treatment in each link.

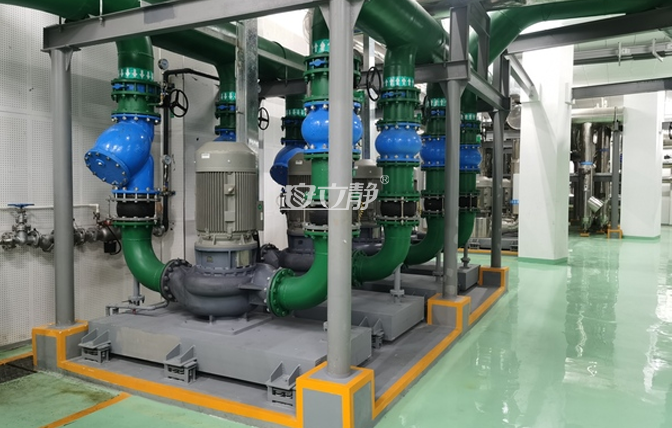

1. Vibration reduction of water pump

The current effective treatment method for water pump vibration reduction is to install the water pump vibration reduction pedestal and spring damper together. Installing a vibration reduction pedestal can increase

The counterweight of the water pump group reduces the amplitude caused by disturbance, increases stability, and solves the problem of water pump vibration.

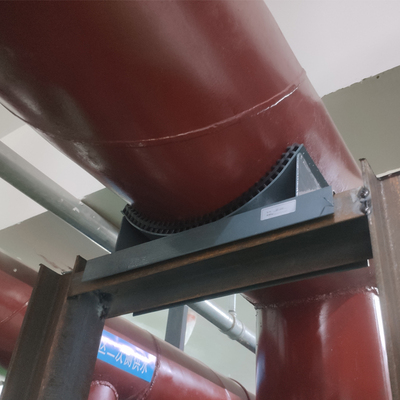

2. Pipeline vibration reduction

Spring dampers should be installed to support the inlet and outlet pipelines of the water pump.

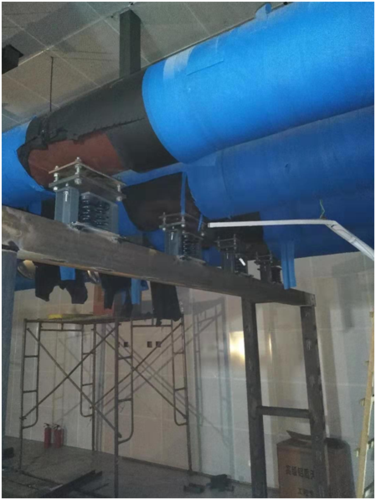

Lifting pipelines requires the installation of suspension spring dampers or rubber pipeline dampers.

The lifting of pipelines can also be carried out in the form of door type supports and spring dampers.

3. Wall vibration reduction

Directly fix the wall shock absorber to the wall with screws, then fix the keel to the shock absorber, fill it with environmentally friendly acoustic cotton, and apply insulation

The soundboard can be installed by painting and scraping the porcelain at the end

4. Vibration reduction of floating floor

Creating a localized floating vibration reduction floor beneath the equipment and installing damping spring dampers between the floating floor and the equipment is equivalent to creating a double effect

Heavy isolation avoids direct contact between the equipment and the floor or ground, effectively isolating the transmission of vibration.

There are multiple and complex vibration transmission points in the pump room, and a comprehensive vibration isolation plan is required.

Jianli vibration reduction technicians provide free design of pump room vibration isolation solutions, with a professional customer service team for one-on-one selection and provision of vibration isolation meters

Calculation books can help customers better solve low-frequency vibration problems in pump rooms.
